Disc Mower Conditioners

DMC8500 Series

Experience excellent maneuverability with the Kubota DMC8500 Series, equipped with a center pivot and swivel hitch headstock. This key advancement in mower design enables operators to mow in a continuous pattern without constantly opening new headlands. With a working width of 11'10" (3.6 m) to 15'5" (4.7 m) and a heavy-duty suspension system built for maximum flotation, this trailed mower conditioner covers more ground with ease. Available in both roller and tine conditioning configurations to match your field needs.

Features

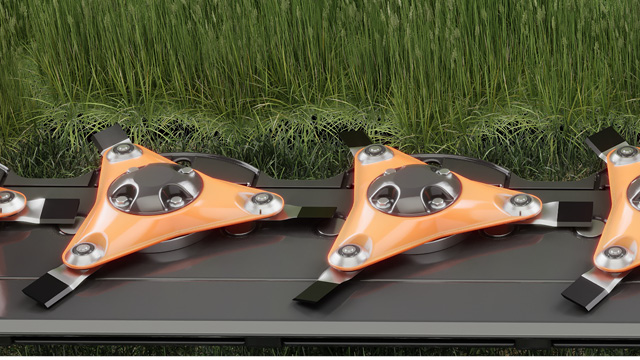

Three-bladed discs

Three-bladed discs

With three blades per disc, Kubota mowers provide a 50% higher cutting frequency compared to conventional solutions. This means a third less load per blade, an even load on the drive, smoother power usage, and produces a neat, cleanly cut stubble.

Fully welded cutterbar

Fully welded cutterbar

The Kubota cutterbar’s high cooling and lubrication efficiency oil pump system reduces wear and tear. The fully welded cutterbar with overlapping C-channels makes for a very strong design requiring low maintenance with no risk of loose bolts.

Shear protection

Shear protection

Shear protection of gear wheels and the drive system designed to break in case or overload or major contact. Once sheared, the hub is easily replaceable for minimum downtime.

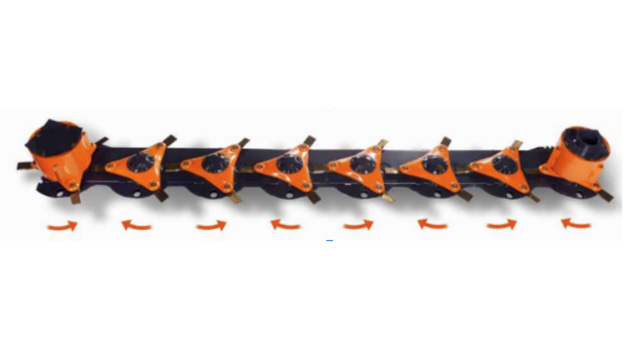

Counter-rotating discs

Counter-rotating discs

An even number of counter-rotating discs provides generous overlap between all discs and a better crop throughput.

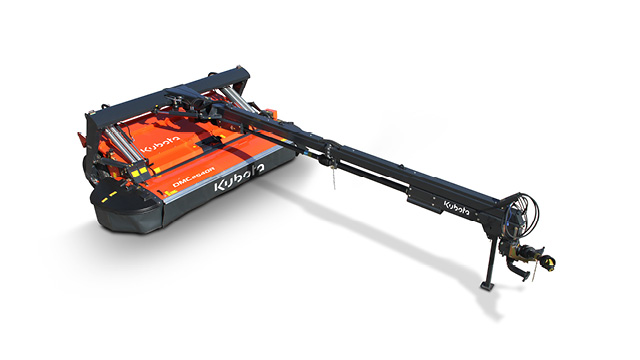

Independent active suspension

Independent active suspension

The complete mowing section, is suspended independently from the main chassis by either two or four long adjustable suspension springs, allowing field tracks and contours to be closely followed. If an obstacle is encountered in the field, the mowing section will lift up and backwards, protecting the cutterbar from damage.

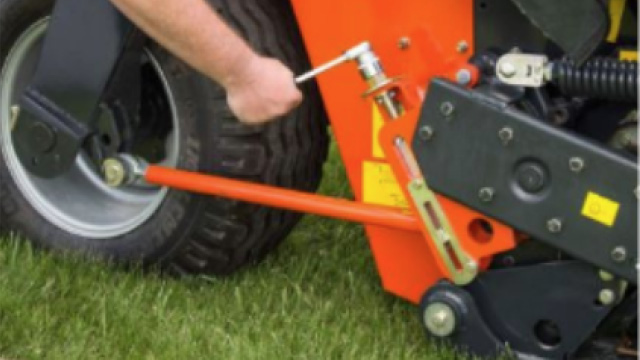

Easy adjustment of stubble height

Easy adjustment of stubble height

A simple crank adjusts the whole cutterbar assembly angle up or down to a desired stubble height. While standard with 40 mm skid shoes, additional 20 mm, 60 mm or 80 mm are available to further adjust cutting height.

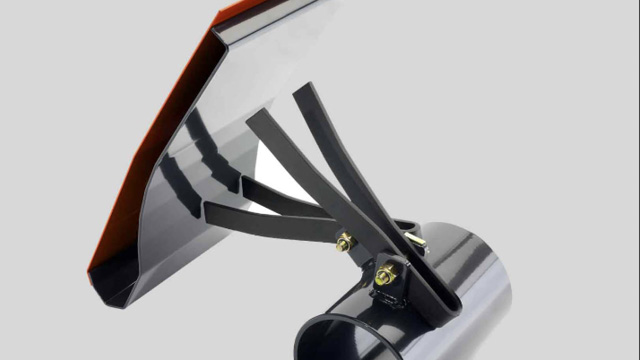

Full-width SemiSwing tine conditioning

Full-width SemiSwing tine conditioning

The Kubota SemiSwing tine conditioner with adjustable conditioning hood is highly adaptable to varying crop types. During operation tines will stay in a fixed position, providing full cutterbar width conditioning with minimum wear.

Full-width rubber roller conditioning

Full-width rubber roller conditioning

Roller conditioning provides gentle, yet effective handling of fragile crop such as alfalfa or clover. The adjustable spring-controlled pressure exerted between the two rollers guarantees uniform conditioning and low risk of plugging.

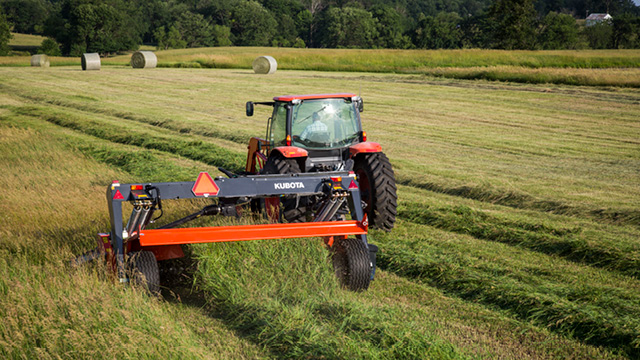

Adjustable swath formation

Adjustable swath formation

Easy adjustable windrow width ranging from narrow to widespread. Rear deflector is fully adjustable to help stand the crop up or lay it down allowing for different windrow textures.

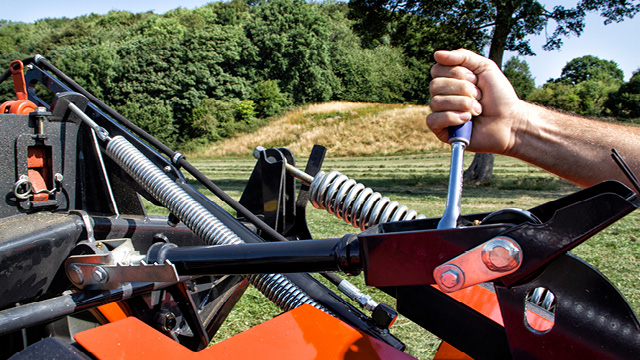

Ease of adjustments and maintenance

Ease of adjustments and maintenance

Single-bolt or optional hydraulic stubble height adjustment, swing-away front curtain and hood, optional hydraulic roller separation kit and, accessible cable and hose routing.

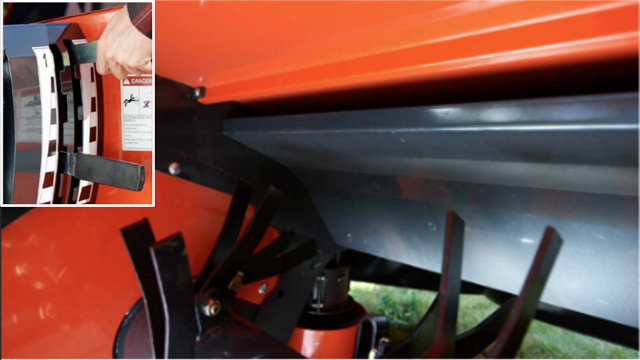

BX belt merger kit

BX belt merger kit

The optional BX belt merger kit can be fitted on trailed DMC's to deposit one swath onto another creating fuller windrows. When not needed, it can be lifted up and out of the way for typical single swath formation.

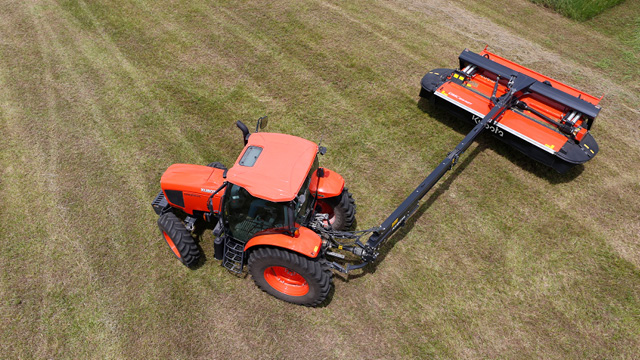

Exceptional maneuverability

Exceptional maneuverability

The Kubota DMC8500 Series come equipped with a center pivot and swivel hitch headstock and gear box. This important advantage in mower design allows operators to mow in one continuous pattern, without the need for constantly opening up new headlands.

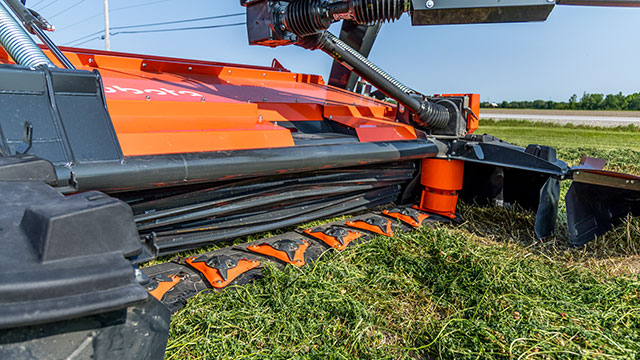

Full-width steel roller conditioning

Full-width steel roller conditioning

Designed for tough, thick-stemmed crops, the strong crimping action accelerates dry-down time, making it ideal for dense or coarse forage.

Models

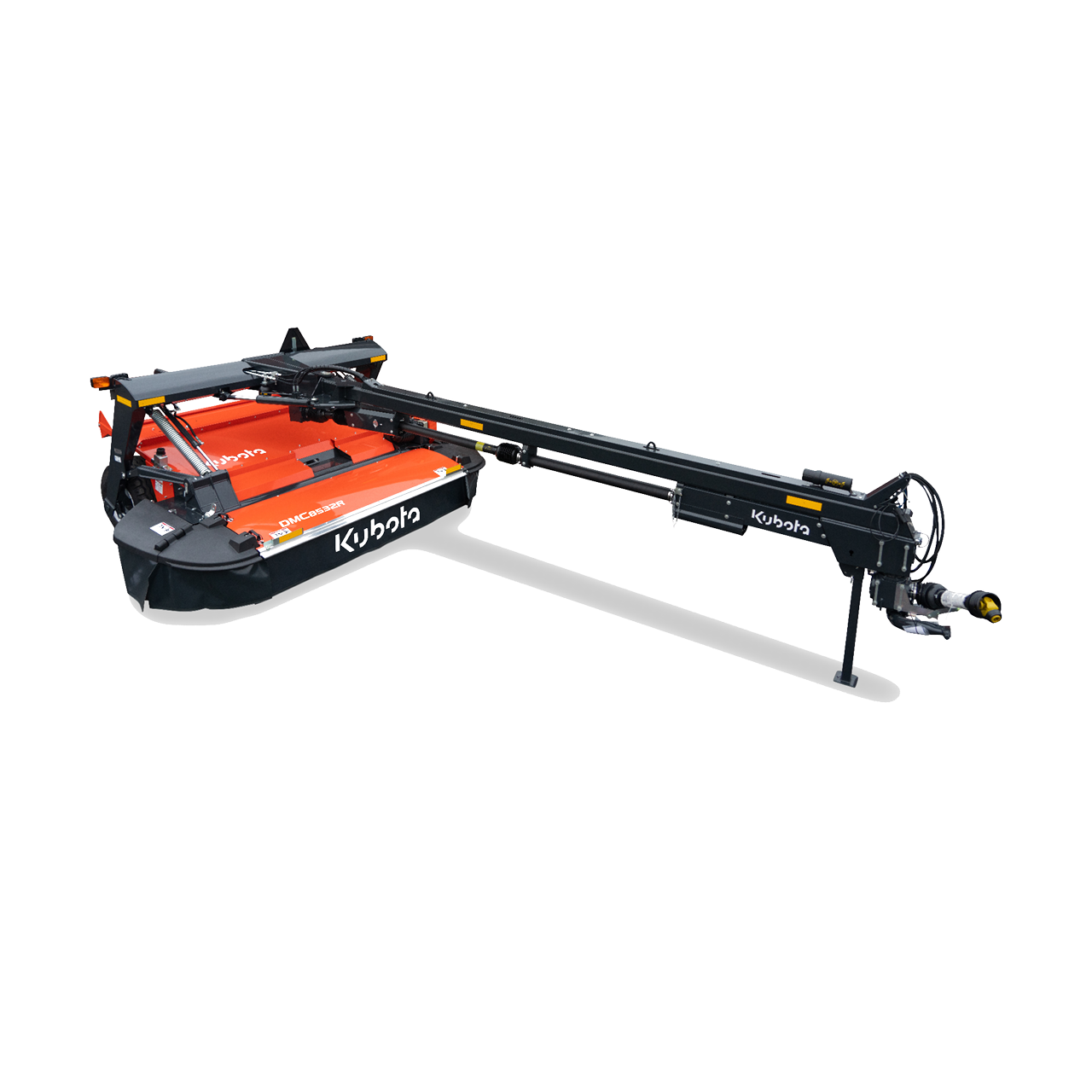

DMC8532T

DMC8532T

Type: Center Pivot Trailed
Cutting Width: 10'6" (3.2m)
Conditioner: SemiSwing Tine
Horsepower (min): 80.0 HP
PTO: 540/1000RPM
DMC8532R

DMC8532R

Type: Center Pivot Trailed
Cutting Width: 10'6" (3.2m)
Conditioner: Rubber Roller
Horsepower (min): 80.0 HP
PTO: 540/1000RPM
DMC8536T

DMC8536T

Type: Center Pivot Trailed
Cutting Width: 11'6" (3.5m)
Conditioner: SemiSwing Tine
Horsepower (min): 90.0 HP
PTO: 540/1000RPM

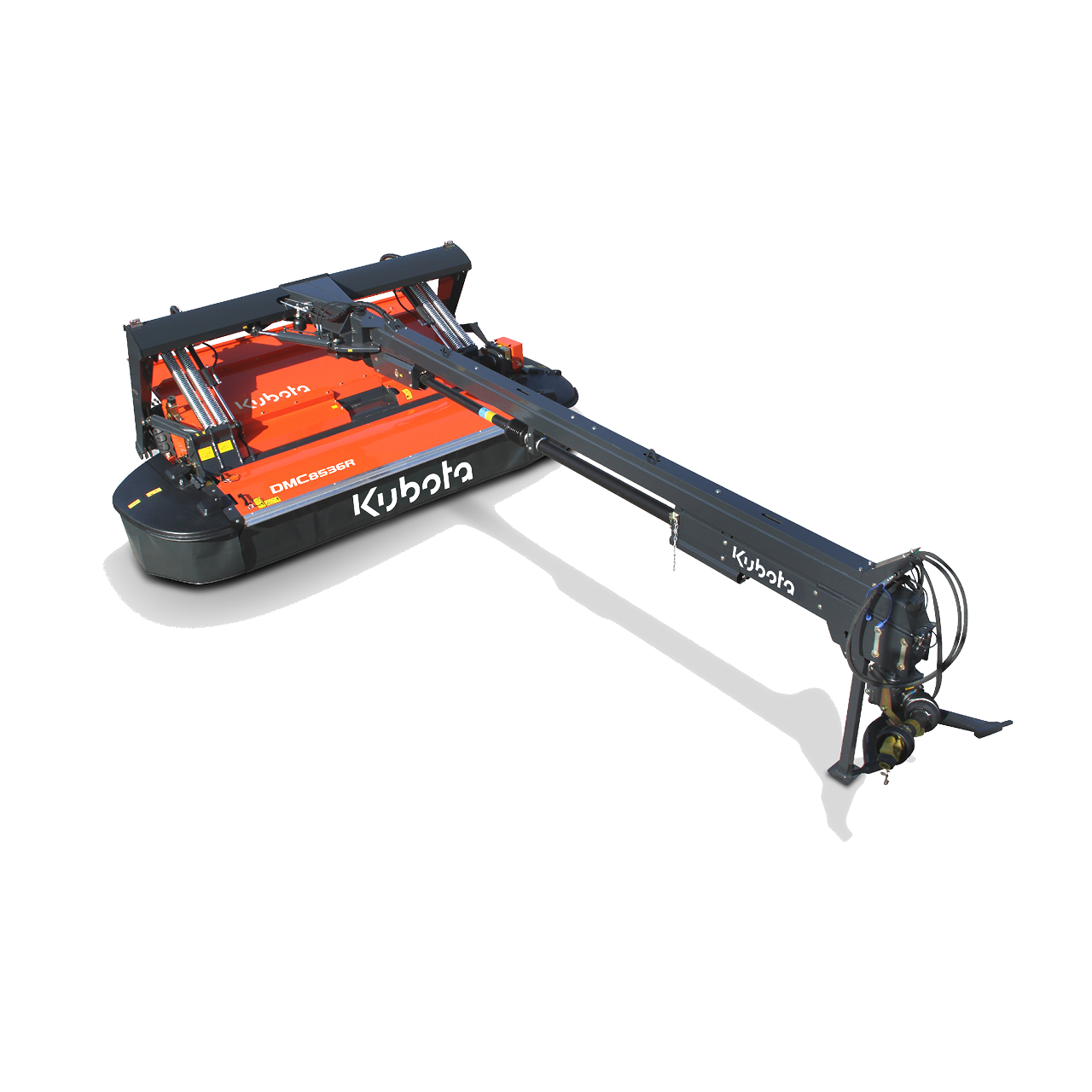

DMC8536R

DMC8536R

Type: Center Pivot Trailed
Cutting Width: 11'6" (3.5m)
Conditioner: Rubber Roller
Horsepower (min): 90.0 HP
PTO: 540/1000RPM
DMC8540T

DMC8540T

Type: Center Pivot Trailed
Cutting Width: 13'1" (4m)
Conditioner: SemiSwing Tine
Horsepower (min): 100.0 HP
PTO: 540/1000RPM
DMC8540R

DMC8540R

Type: Center Pivot Trailed
Cutting Width: 13'1" (4m)
Conditioner: Rubber Roller
Horsepower (min): 100.0 HP
PTO: 540/1000RPM

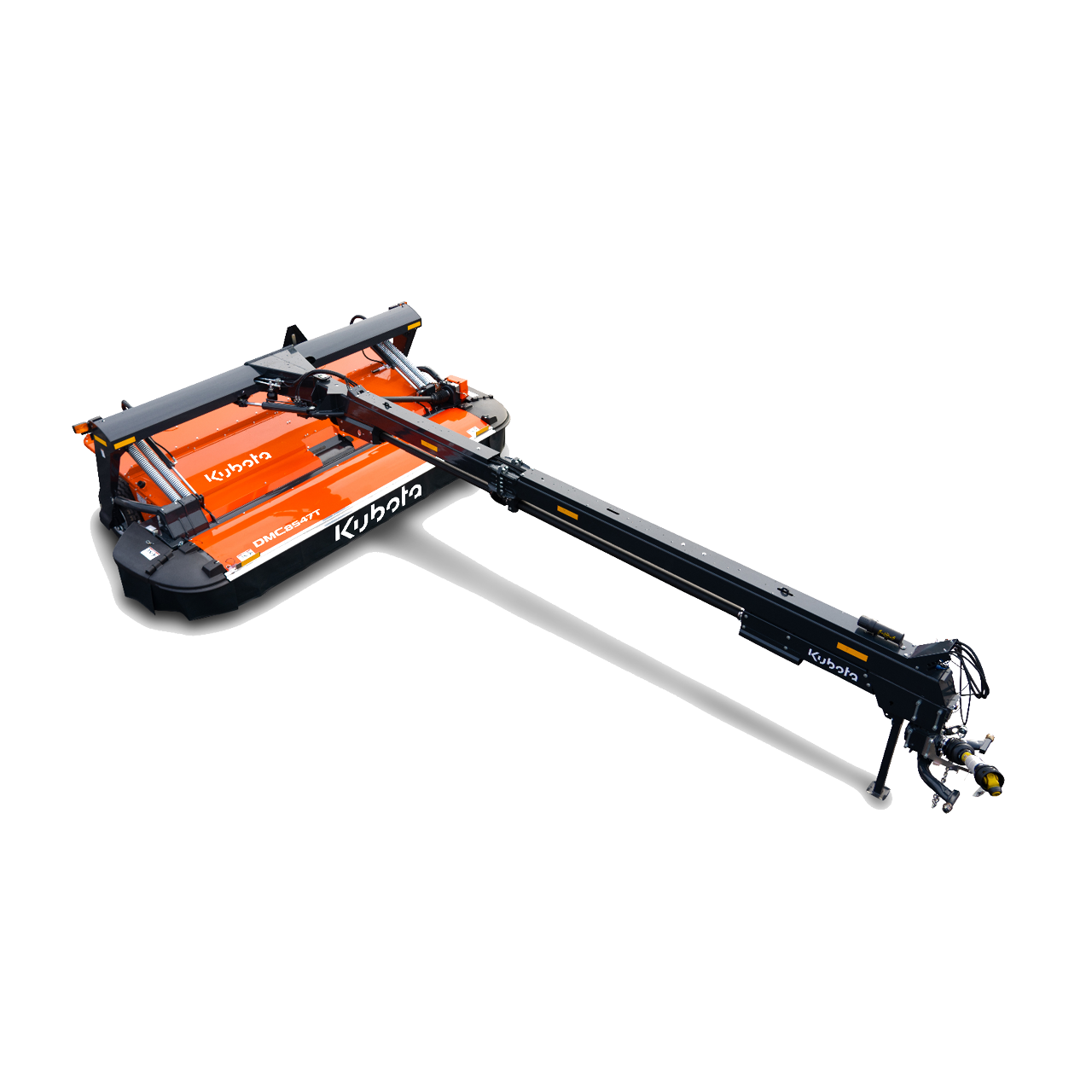

DMC8547T

DMC8547T

Type: Center Pivot Trailed
Cutting Width: 15'5" (4.7m)
Conditioner: SemiSwing Tine
Horsepower (min): 120.0 HP
PTO: 540/1000RPM
DMC8547R

DMC8547R

Type: Center Pivot Trailed
Cutting Width: 15'5" (4.7m)
Conditioner: Rubber Roller
Horsepower (min): 120.0 HP
PTO: 540/1000RPM
DMC8532RS

DMC8532RS

Type: Center Pivot Trailed
Cutting Width: 10'6" (3.2m)
Conditioner: Steel Roller
Horsepower (min): 80.0 HP
PTO: 540/1000RPM
DMC8536RS

DMC8536RS

Type: Center Pivot Trailed
Cutting Width: 11'6" (3.5m)
Conditioner: Steel Roller
Horsepower (min): 90.0 HP
PTO: 540/1000RPM

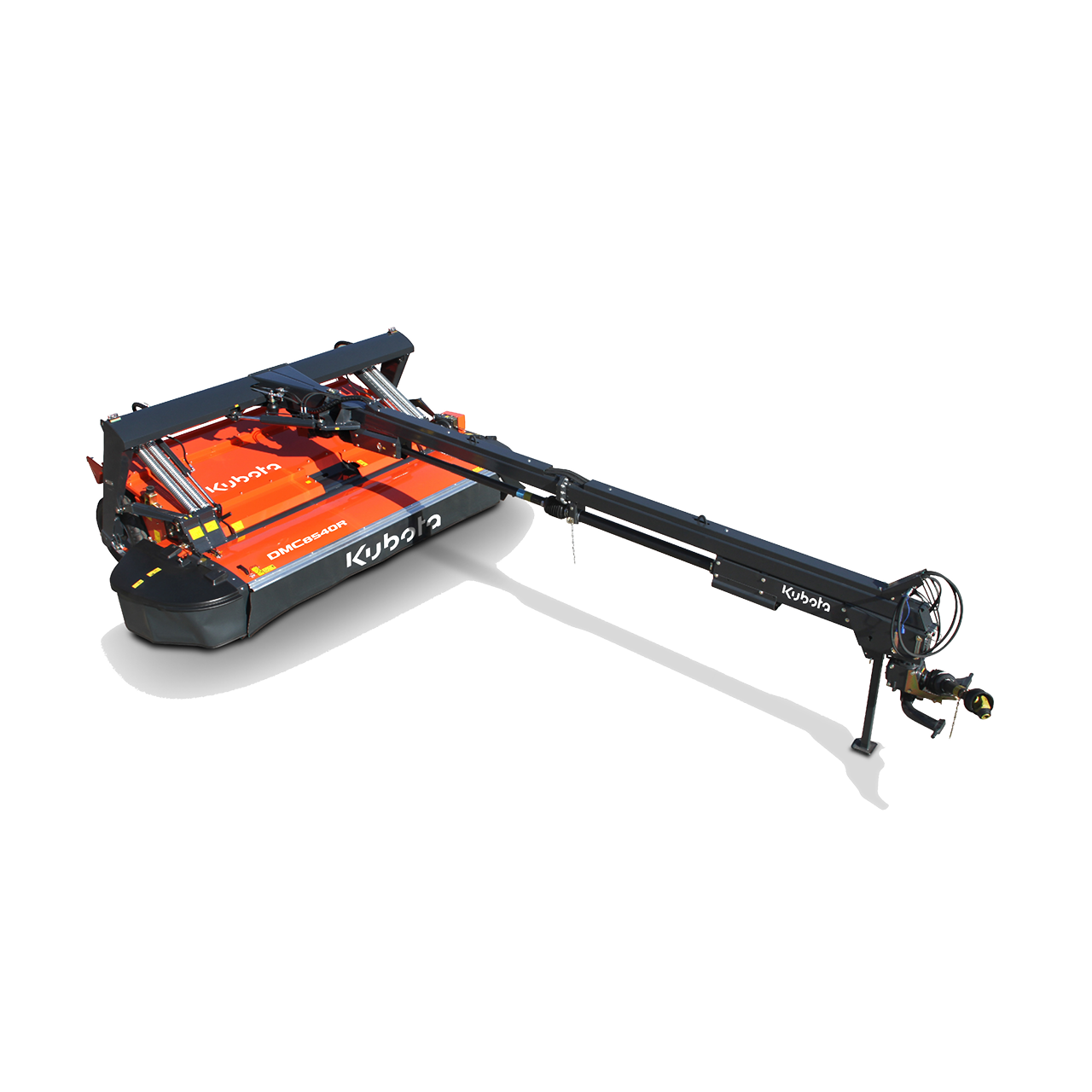

DMC8540RS

DMC8540RS

Type: Center Pivot Trailed
Cutting Width: 13'1" (4m)
Conditioner: Steel Roller
Horsepower (min): 100.0 HP
PTO: 540/1000RPM
DMC8547RS

DMC8547RS

Type: Center Pivot Trailed
Cutting Width: 15'5" (4.7m)
Conditioner: Steel Roller
Horsepower (min): 120.0 HP
PTO: 540/1000RPM
